How to make light up popping out toast card. (easy pull tab switch)

Hi, crafty friends!

Today I make light up popping out toast card using Chibitronics and Lawn Fawn stamps and dies.

When you pull the tab, the toast pops out of the toaster and the hearts glow.

Using Lawn Fawn's let's toast pull tab add-on, you can make a pull tab switch very easily!!!

What you need to make a light up card is like this.
"Chibitronics Red, Yellow, and Blue LED Sticker Pack"
"3V coin cell battery (CR2016)"
"5mm wide Copper tape"

I will make the parts referring to the picture below.

4 1/4 x 11 inches kraft cardstock.
3 1/2 x 4 3/4 inches pattern paper and white cardstock. Die cut these papers using notch and straight slit dies. Die cut pattern paper using heart die.
Stamp the sentiment onto small pattern paper. (Size 7/8 x 3 1/2 inches)
Two pull tab parts.
Stamp the toaster onto white cardstock and pattern paper. Die cut the top of the toaster with curved slit die.

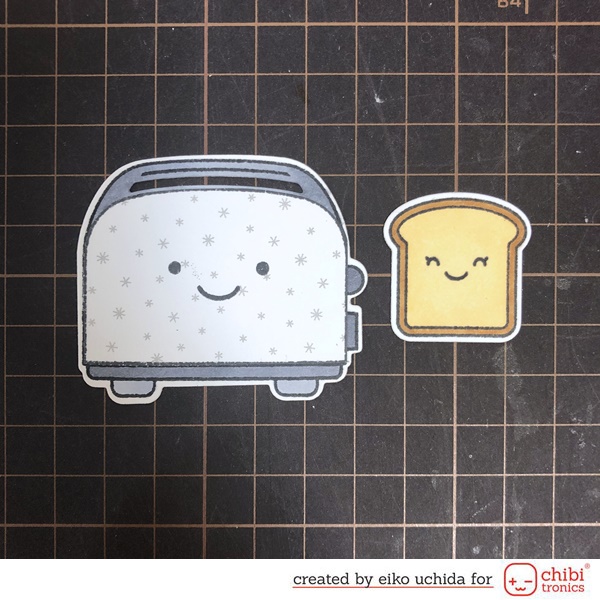

Stamp the toast onto the white cardstock and die cut it.
Die cut the paper using small tab and sleeve dies.
7/16 x 7/8 inch white cardstock.
Stamp the heart onto white vellum.

Color the toast and toaster with Copic markers. (C3, C5, E50, E51, E35) Stick the toaster cover part on the toaster body part.

Stick the sentiment part on the cover panel. Put the cover panel on white cardstock and mark the lights with a pencil.

~Make the circuit~

Stick the copper tape on the pre-drawn path.
At the battery place, peel off the release paper, stick the negative side copper tape, fold it back and cut it.
Stick the positive side copper tape.
At the position of the battery leave the positive side copper tape about 1 inch and cut it.

Place the battery on the copper tape with positive side facing up and stick the positive side copper tape on the battery.
Attach the red LED to the copper tape, over the outline.
Stick short copper tape on the edges of the LED to reinforce.

Fold the flap along the crease.

Insert the flap into the slit and place the switch at the top end of the slit.

The back side is like this.

Mark the position of the copper tape.

Remove the switch part from the slit and stick the copper tape on the mark.

Fold the flap along the crease.

Re-insert the switch part into the slit and test the LEDs turn on.

The back side is like this.

~Make the cover panel~

Stick the toast part on the flap.

Apply the foam tape to the back side of the toaster part. (Stick the foam tape on the edge of the toaster part.)

Pass the top of the toast part through the slit of the toaster part.

When you pull the tab, the toast pops out of the toaster.

~Assemble the sleeve~

Fold the sleeve along the crease.

Attach tape glue to the center of the back side of the sleeve.

Pass the sleeve through the back side of the pull tab and stick it on the cover panel.
Attach tape glue to another pull tab part.
Stick two pull tab parts together.

Attach the tape glue inside the tab of the sleeve. Stick them together so as to wrap around the pull tab.
